Cleaning Objects

1. Auto High Pressure Washer（New）

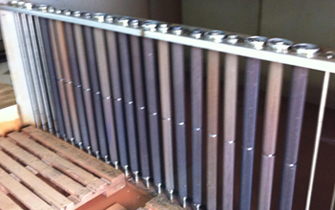

Cleaning Objects: Candle Filter
External washing nozzle is used to cleaning up the surface of filter
The telescopic internal flushing nozzle is deep inside the filter, and the filter is cleaned from inside to outside.
2. Auto High Pressure Washer
Cleaning Objects: Candle Filter
External washing nozzle is used to cleaning up the surface of filter
The fixed internal flushing nozzle is cleaning the filter from inside to outside.
3. Manual High Pressure Washer
Cleaning Objects: Candle Filter

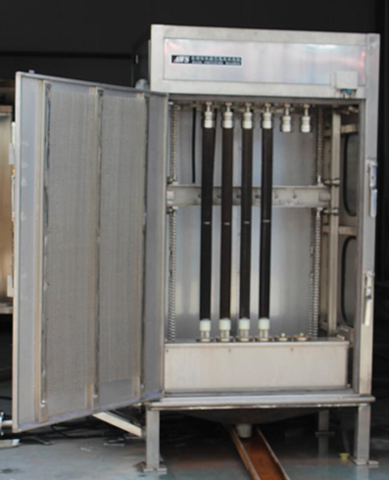

Auto High Pressure Washer I AWS-series
Cleaning Objects: Candle Filter
Main function:
High-pressure cleaning machine is used to remove TiO2 and alkali remaining in the filter. System according to the procedures set automatically cleaning filter, the internal washing nozzle is inserted into the filter for cleaning.
It has high cleaning efficiency, and good cleaning effect.
There is no cleaning blind area, can effectively reduce the number of workers and reduce labor intensity.
It is an important part of the cleaning process.
Cleaning stage:
Installing the filter---Internal washing ---External washing---End---Remove the filter；
Installing the filter：Fixed the candle filter on rotary support；
Select the internal and external cleaning times on the control cabinet, start automatic operation；
Filter rotation：The filter element has been rotated during cleaning stage；
High pressure internal washing：The high-pressure internal spray gun moves up and down with the reciprocating device, and the inner part of the filter is flushed, until the end of time.
High pressure external washing：The high-pressure external spray gun moves up and down with the reciprocating device,
Until the end of time。
End：end of the cleaning process
Remove the filter
Remark：The running time of the equipment, the speed of the spray gun moving, the flushing times of the internal and external washing are controlled by the touch screen。
Cycle Time

Step	Time	5	10	15	20	25	30	35	40	45	50
Set the Filter	5min
Internal washing	20min
External washing	20min
Take out the filter	5min

Technical parameter:

Model	AWS-4S	AWS-6S
Cleaning ability	φ600×1215mm 4pcs	φ600×1215mm 6pcs
Outline dimension	1430×1000×3630	1630×1000×3630
Dimension of control cabinet	900×400×700	900×400×700
Dimension of external pump	1200×1150×930	1680×1150×930
Dimension of internal pump	250×210×1215	250×210×1215
Dimension of operation ladder	2100×1000×2600	2100×1000×2600
Control cabinet position	Integrated,located on side of equipment
Power supply	17KW	25KW
Cleaning Time	40min	40min
Pressure of external pump	8-20MPa	8-20MPa
Flow of external pump	20L/min×2	30L/min×2
Power of external pump	7.5KW×2	7.5KW×3
Brand of external pump	Italy	Italy
Pressure of internal pump	1.6Mpa	1.6Mpa
Flow of internal pump	60L/min	60L/min
Power of internal pump	4KW	4KW
Brand of internal pump	China	China
Control mode	PLC+Touch screen	PLC+Touch screen
Cleaning mode	Internal and external washing	Internal and external washing
Driver of Reciprocating device	Servo Drive	Servo Drive
Reciprocating speed	120-240mm/min	120-240mm/min
Rotational speed	7rpm	7rpm

Main Parts

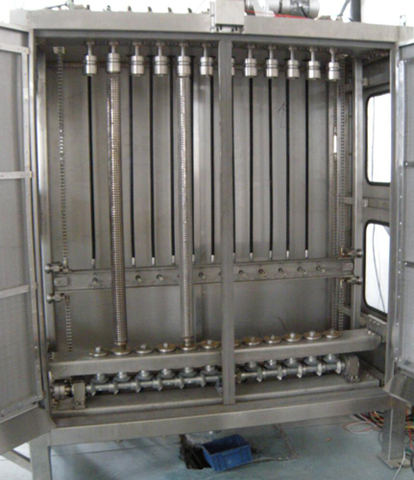

Auto High Pressure Washer II AWS-series
Cleaning Objects: Candle Filter
Main function:
High-pressure cleaning machine is used to remove TiO2 and alkali remaining in the filter .System according to the procedures set automatically cleaning filter,The fixed internal flushing nozzle flushing filter inside.
It has high cleaning efficiency, and good cleaning effect,
There is no cleaning blind area, can effectively reduce the number of workers and reduce labor intensity,
It is an important part of the cleaning process.
Cleaning stage:
Installing the filter---Internal washing---External washing---End---Remove the filter；
Installing the filter：Fixed the candle filter on rotary support；
Select the internal and external cleaning times on the control cabinet, start automatic operation；
Filter rotation：The filter element has been rotated during cleaning stage；
High pressure internal washing：The high-pressure internal spray gun flushes the filter inside, until the end of time.
High pressure external washing：The high-pressure external spray gun moves up and down with the reciprocating device,
Until the end of time。
High pressure internal washing：The high-pressure internal spray gun flushes the filter inside, until the end of time
End：end of the cleaning process
Remove the filter
Remark：The running time of the equipment, the speed of the spray gun moving, the flushing times of the internal and external washing are controlled by the touch screen。
Cycle Time

Step	Time	5	10	15	20	25	30	35	40	45	50
Set the Filter	5min
Internal washing	5min
External washing	20min
Internal washing	20min
Take out the filter	5min

Technical parameter:

Model	AWS-4	AWS-6
Cleaning ability	φ600×1215mm 4pcs	φ600×1215mm 6pcs
Outline dimension	1430×1000×2350	1630×1000×23450
Dimension of control cabinet	900×400×700	900×400×700
Dimension of external pump	1200×1150×930	1680×1150×930
Dimension of internal pump	250×210×1215	250×210×1215
Control cabinet position	Integrated,located on side of equipment
Power supply	17KW	25KW
Cleaning Time	30min	30min
Pressure of external pump	8-20MPa	8-20MPa
Flow of external pump	20L/min×2	30L/min×2
Power of external pump	7.5KW×2	7.5KW×3
Brand of external pump	Italy	Italy
Pressure of internal pump	1.0Mpa	1.0Mpa
Flow of internal pump	200L/min	200L/min
Power of internal pump	5.5KW	5.5KW
Brand of internal pump	China	China
Control mode	PLC+Touch screen	PLC+Touch screen
Cleaning mode	Internal and external washing	Internal and external washing
Driver of Reciprocating device	Servo Drive	Servo Drive
Reciprocating speed	120-240mm/min	120-240mm/min
Rotational speed	7rpm	7rpm
