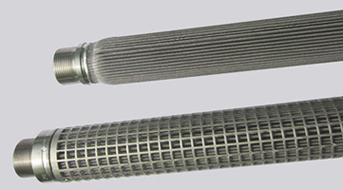

Cleaning Objects: Filter of PET, PBT, PA, R-PET, Particularly suitable for high filter precision filter.
Cleaning Objects

Features:
The rotating candle filters are clamped by double thimble bearing.
It is sure to 360 degree operation with no dead angle when ultrasonic moving.
Compound type: The Horn type (upper) ultrasonic combined with the Immersion type (lower) ultrasonic;
High frequency combined with low frequency. Two types of ultrasonic cleaning system both working.
Z travel mode: the Horn type (upper) ultrasonic is moved in Z travel and cleans candle filter one by one.
Specifications:

Model	NFU-1525S-Z	NFU-1525D-Z	NFU-1520D-Z
Cleaning capacity	3pcs	6pcs	6pcs
Horn Frequency	15KHz	15KHz	15KHz
Ultrasonic Power(Horn)	4000W	4000W x 2	4000W x 2
Power Density	15-17W/cm2	15-17W/cm2	15-17W/cm2
Fixed Frequency	25KHz	25KHz	25KHz
Ultrasonic Power(Fixed)	1500W x 2	1500W x 4	2100W x 4
Power Density	0.5-1.0W/cm2	0.5-1.0W/cm2	0.7-1.5W/cm2
Outline Dimension	2200×1020×1450	2200×1220×1450	2200×1220×1450
Cleaning Tank Dimension	1840×480×350	1840×680×350	1840×680×350
Control Panel Dimension	650×650×1860	650×650×1860	650×650×1860
Horn	Rectangle or Circle	Rectangle or Circle	Rectangle or Circle
Material of Horn	TC4	TC4	TC4
Material of Fixed resonator	SUS316L,Chromeplate	SUS316L,Chromeplate	SUS316L,Chromeplate
Power Supply	380V 50Hz	380V 50Hz	380V 50Hz
Heating Power	6KW	6KW	6KW
Working Temp.	50 degree	50 degree	50 degree
Inlet	DN15	DN15	DN15
Outlet	DN40	DN40	DN40
Cleaning Time	1-2 hours	1-2 hours	1-2 hours

Remark: Couldn’t list all here. It can be customized according to the size of parts to be cleaned.
Device cleaning capacity based on filter of φ60×1215/1239mm.
Main Part:

Cleaning method:

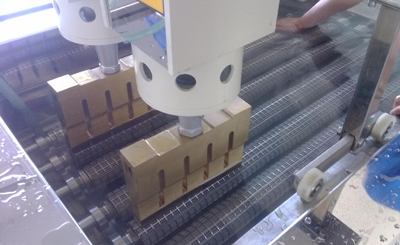

Horn Resonator & Fixed Resonator, two types of ultrasonic cleaning device both working. The horn resonator is cleaning by positioning（X/Y axis）and the filter is rotating at all the cleaning time.

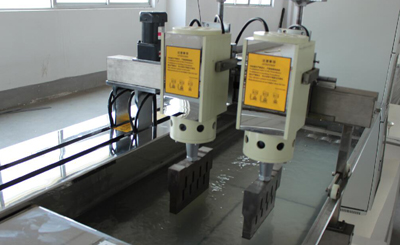

Horn resonator is installed under the upper of cleaning tank,is used to cleaning up the top surface of works.
Fixed resonator is fixed under the bottom of cleaning tank,is used to cleaning up the back side of filter.
The control cabinet is used to control the cleaning device operation, display equipment running status，place the ultrasonic generator. Integrated self-supporting,Installed near the equipment.
Optional Configuration:
