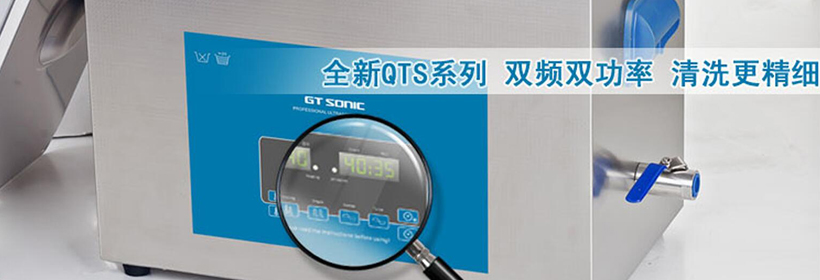

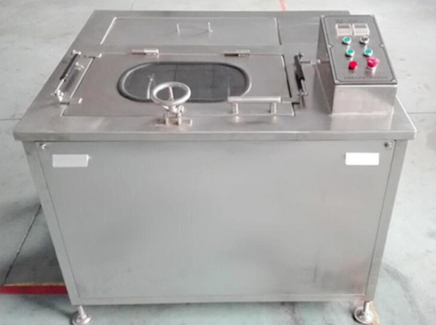

Digital Series Ultrasonic Cleaner
Digital Series Ultrasonic Cleaner



































Introduction:
Ultrasonic power conversion efficiency is high, quick cleaning speed, more efficient than the traditional cleaning method several times to dozens times.
Good cleaning effect. Cleanliness, deep hole, slit and irregular parts of the shelter can be effectively cleaned.
Specification:
Model Chamber size Outline Size Capacity Power Frequency Heating Power Time Heating time
LxWxH(mm) LxWxH(mm) L W KHz W Min.
1613T 150x140x65 190x170x185 1.3 50 40 --- 0-15 ---
1620T 150x140x100 190x170x220 2 50 40 --- 0-15 ---
1730QT 240x140x100 270x170x240 3 100 40 100 0-20 20-80
1740QT 300x155x100 330x180x240 4 100 40 100 0-20 20-80
1860QT 300x155x150 330x180x310 6 150 40 300 0-20 20-80
1990QT 300x240x150 330x270x310 9 200 40 300 0-20 20-80
2013QT 355x325x150 360x330x310 13 300 40 400 0-20 20-80
2120QT 530x325x150 550x330x310 20 400 40 500 0-20 20-80
2227QT 530x325x200 550x330x360 27 500 40 500 0-20 20-80
